Magnetic V-blocks

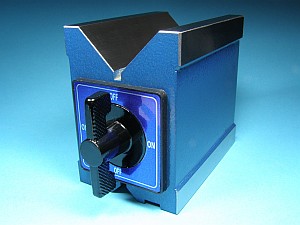

Magnetic V-block

- for marking, measuring, positioning, grinding, drilling, eroding etc.
- two magnetic contact surfaces
- usable for cylindrical workpieces of ø8 - 70mm
- parallelism ±0,01mm upon 100 mm
- angularity ±0,03mm upon 100 mm

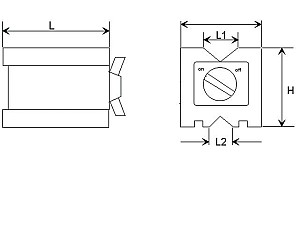

Magnetic V-block

Type
H
W
L
L1
L2
adhesive Force
Weight
[mm]
[mm]
[mm]
[mm]
[mm]
[N]*
[kg]
350100 95,3 70 101,6 50 20 700 4
