Magnetic V-blocks

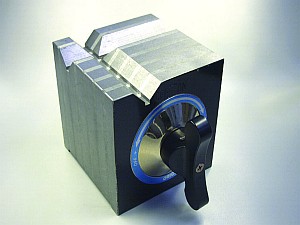

Magnetic V-blocks

- for marking, measuring, positioning, grinding, drilling, eroding etc.
- two magnetic contact surfaces
- usable for cylindrical workpieces of  ø8 - 70mm
- parallelism ±0,01mm upon 100 mm
- angularity ±0,03mm upon 100 mm

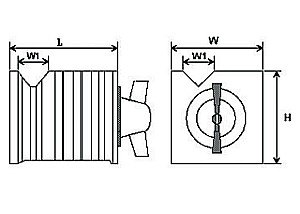

Magnetic V-blocks Drawing

Type
H
W
L
W1
Adhesive Power 1
Adhesive Power 2
Weight
[mm]
[mm]
[mm]
[mm]
[N]
[N]*
[kg]
350116 100 100 100 26 250 500 7,5
350118 150 150 150 32 500 1400 22
